Self-interacting neutrinos#
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.cm as cm
import matplotlib.colors as mcolors
import classy
##Define cosmologies:
dict_general = {
# General & Background
'h': 0.67810,
'T_cmb': 2.7255,
'omega_b': 0.02238280,
'omega_cdm': 0.1201075,
'N_ur': 3.044,
'Omega_k': 0.,
'YHe': 'BBN',
'recombination': 'recfast',
# Reionization
'reio_parametrization': 'reio_camb',
'z_reio': 7.6711,
'reionization_exponent': 1.5,
'reionization_width': 0.5,
'helium_fullreio_redshift': 3.5,
'helium_fullreio_width': 0.5,
# Perturbations & Output types
'output': 'tCl,pCl,lCl,mPk',
'modes': 's',
'ic': 'ad',
'gauge': 'synchronous',
'lensing': 'yes',
# Primordial Spectrum
'k_pivot': 0.05,
'A_s': 2.100549e-09,
'n_s': 0.9660499,
'alpha_s': 0.,
# Spectra Limits & LSS
'l_max_scalars': 2500,
'P_k_max_h/Mpc': 1.,
'z_pk': 0,
# Verbosity
'input_verbose': 0,
'background_verbose': 0,
'thermodynamics_verbose': 0,
'perturbations_verbose': 0,
'transfer_verbose': 0,
'primordial_verbose': 0,
'lensing_verbose': 0,
'output_verbose': 0,
'back_integration_stepsize': 1e-3,
'perturb_integration_stepsize': 1e-3
}
# Make some helper functions for cleaner code in the notebook:
def run_cosmo(classy_version, dict_in):
model = classy_version.Class()
model.set(dict_in)
model.compute()
return model
def plot_Cl_TT(model, ax = None,**kwargs):
# Get the computed data dictionary
cl = model.lensed_cl(2500)
l = cl['ell']
# Compute C_l = l(l+1)C_l / 2pi (in muK^2)
factor = l * (l + 1) / (2 * np.pi) * 1e12
cl_TT = factor * cl['tt']
if ax is not None:
ax.plot(l, cl_TT, **kwargs)
return l, cl_TT
Running interacting Non-Cold-Dark-Matter in CLASS++:#
We can start by running the LCDM model as a baseline:
model_LCDM = run_cosmo(classy, {**dict_general})
To activate self-interacting NCDM, declare a named instance with dot-syntax: <instance>.type = ncdm_self_interacting, then set its parameters as <instance>.<name>.
## We can define the parameters for the NCDM model and run it:
dict_ncdm = {
'nui1.type': 'ncdm_self_interacting',
'nui1.m': 0.01,
'nui1.T': 0.71611,
'nui1.deg': 1,
'nui1.Omega': 0.001,
'nui1.ksi': 0.
}
model_NCDM = run_cosmo(classy, {**dict_general, **dict_ncdm})
If we want, we can also define multiple interacting NCDM species: each named instance is independent.
dict_ncdm_multiple_species = {
'nui1.type': 'ncdm_self_interacting',
'nui1.m': 0.1,
'nui1.T': 0.71611,
'nui1.deg': 1,
'nui1.Omega': 0.001,
'nui1.ksi': 0.,
'nui2.type': 'ncdm_self_interacting',
'nui2.m': 0.2,
'nui2.T': 0.71611,
'nui2.deg': 1,
'nui2.Omega': 0.001,
'nui2.ksi': 0.
}
model_NCDM_multiple_species = run_cosmo(classy, {**dict_general, **dict_ncdm_multiple_species})
N = 1
m_ncdm_values = np.logspace(-2, 3, N)
fig, axs = plt.subplots(2,1, figsize=(10, 8), sharex=True, gridspec_kw={'height_ratios': [3, 1]})
# --- Colormap setup ---
# Restrict range to avoid very light colors
def truncate_cmap(cmap, minval=0.3, maxval=0.9, n=100):
return mcolors.LinearSegmentedColormap.from_list(
f'trunc({cmap.name})',
cmap(np.linspace(minval, maxval, n))
)
cmap_ncdm = truncate_cmap(cm.Reds)
cmap_ratio = truncate_cmap(cm.cool)
norm = mcolors.LogNorm(vmin=m_ncdm_values.min(), vmax=m_ncdm_values.max())
ls_LCDM, cls_LCDM = plot_Cl_TT(model_LCDM, ax=axs[0], label=r'$\Lambda$CDM', color='black')
for m_ncdm_value in m_ncdm_values:
dict_ncdm_local = {**dict_general, **dict_ncdm, 'nui1.m': m_ncdm_value}
model_ncdm_local = classy.Class()
model_ncdm_local.set(dict_ncdm_local)
model_ncdm_local.compute()
color_ncdm = cmap_ncdm(norm(m_ncdm_value))
color_ratio = cmap_ratio(norm(m_ncdm_value))
ls_ncdm, cls_ncdm = plot_Cl_TT(
model_ncdm_local, axs[0],
color=color_ncdm,
alpha = 0.7
)
axs[1].plot(
ls_ncdm,
(cls_ncdm / cls_LCDM - 1) * 100,
color=color_ratio
)
axs[1].axhline(0, color='black', linestyle='--', alpha=0.7)
# --- Colorbars ---
sm_ncdm = cm.ScalarMappable(cmap=cmap_ncdm, norm=norm)
sm_ncdm.set_array([])
cbar_ncdm = fig.colorbar(sm_ncdm, ax=axs[0])
cbar_ncdm.set_label(r'$m_{\mathrm{ncdm}}$')
sm_ratio = cm.ScalarMappable(cmap=cmap_ratio, norm=norm)
sm_ratio.set_array([])
cbar_ratio = fig.colorbar(sm_ratio, ax=axs[1])
cbar_ratio.set_label(r'$m_{\mathrm{ncdm}}$')
# -------Axes labels and titles-------
axs[0].set_xlabel(r'Multipole $\ell$')
axs[0].set_ylabel(r'$C_\ell^{TT}$ [$\mu K^2$]')
axs[0].set_title('CMB Temperature Power Spectrum')
axs[0].legend()
axs[1].set_xlabel(r'Multipole $\ell$')
axs[1].set_ylabel(r'$\Delta C_\ell^{TT}$ [%]')
axs[1].set_title('Relative Difference to $\Lambda$CDM')
/tmp/ipykernel_3536321/1034216443.py:46: RuntimeWarning: invalid value encountered in divide
(cls_ncdm / cls_LCDM - 1) * 100,
Text(0.5, 1.0, 'Relative Difference to $\\Lambda$CDM')

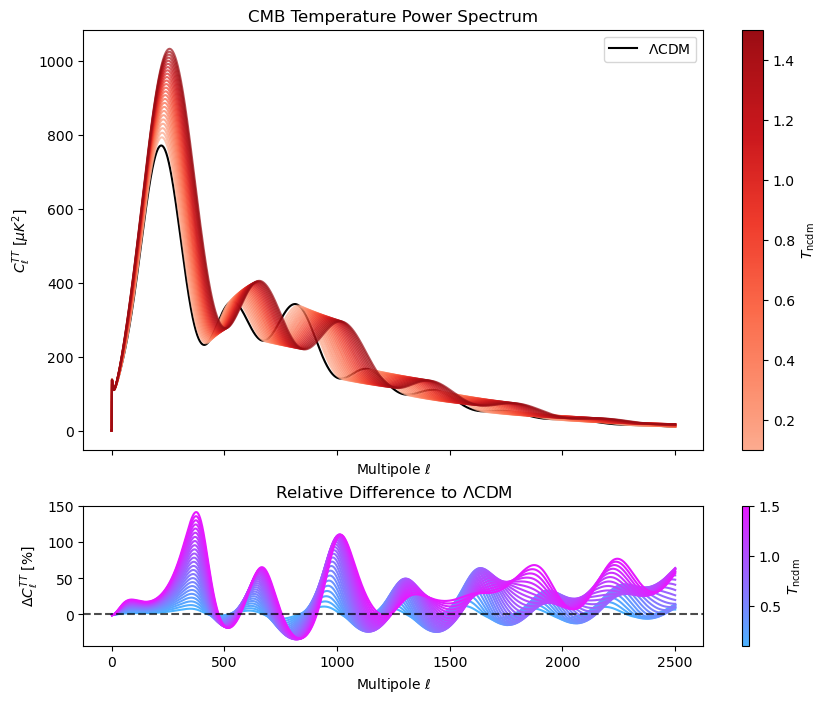

N = 25
T_ncdm_values = np.linspace(0.1, 1.5, N)
fig, axs = plt.subplots(2,1, figsize=(10, 8), sharex=True, gridspec_kw={'height_ratios': [3, 1]})
# --- Colormap setup ---
# Restrict range to avoid very light colors
def truncate_cmap(cmap, minval=0.3, maxval=0.9, n=100):
return mcolors.LinearSegmentedColormap.from_list(
f'trunc({cmap.name})',
cmap(np.linspace(minval, maxval, n))
)
cmap_ncdm = truncate_cmap(cm.Reds)
cmap_ratio = truncate_cmap(cm.cool)
norm = mcolors.Normalize(vmin=T_ncdm_values.min(), vmax=T_ncdm_values.max())
ls_LCDM, cls_LCDM = plot_Cl_TT(model_LCDM, ax=axs[0], label=r'$\Lambda$CDM', color='black')
for T_ncdm_value in T_ncdm_values:
# Fix YHe: at large T_ncdm the implied Delta N_eff leaves the BBN table
dict_ncdm_local = {**dict_general, **dict_ncdm, 'nui1.T': T_ncdm_value, 'YHe': 0.245}
model_ncdm_local = classy.Class()
model_ncdm_local.set(dict_ncdm_local)
model_ncdm_local.compute()
color_ncdm = cmap_ncdm(norm(T_ncdm_value))
color_ratio = cmap_ratio(norm(T_ncdm_value))
ls_ncdm, cls_ncdm = plot_Cl_TT(
model_ncdm_local, axs[0],
color=color_ncdm,
alpha = 0.7
)
axs[1].plot(
ls_ncdm,
(cls_ncdm / cls_LCDM - 1) * 100,
color=color_ratio,
)
axs[1].axhline(0, color='black', linestyle='--', alpha=0.7)
# --- Colorbars ---
sm_ncdm = cm.ScalarMappable(cmap=cmap_ncdm, norm=norm)
sm_ncdm.set_array([])
cbar_ncdm = fig.colorbar(sm_ncdm, ax=axs[0])
cbar_ncdm.set_label(r'$T_{\mathrm{ncdm}}$')
sm_ratio = cm.ScalarMappable(cmap=cmap_ratio, norm=norm)
sm_ratio.set_array([])
cbar_ratio = fig.colorbar(sm_ratio, ax=axs[1])
cbar_ratio.set_label(r'$T_{\mathrm{ncdm}}$')
# -------Axes labels and titles-------
axs[0].set_xlabel(r'Multipole $\ell$')
axs[0].set_ylabel(r'$C_\ell^{TT}$ [$\mu K^2$]')
axs[0].set_title('CMB Temperature Power Spectrum')
axs[0].legend()
axs[1].set_xlabel(r'Multipole $\ell$')
axs[1].set_ylabel(r'$\Delta C_\ell^{TT}$ [%]')
axs[1].set_title('Relative Difference to $\Lambda$CDM')
/tmp/ipykernel_3536321/4019983845.py:45: RuntimeWarning: invalid value encountered in divide
(cls_ncdm / cls_LCDM - 1) * 100,
Text(0.5, 1.0, 'Relative Difference to $\\Lambda$CDM')
